Discover Moon Frame Links!
Moon Frame Link 3
Moon Frame Link 2

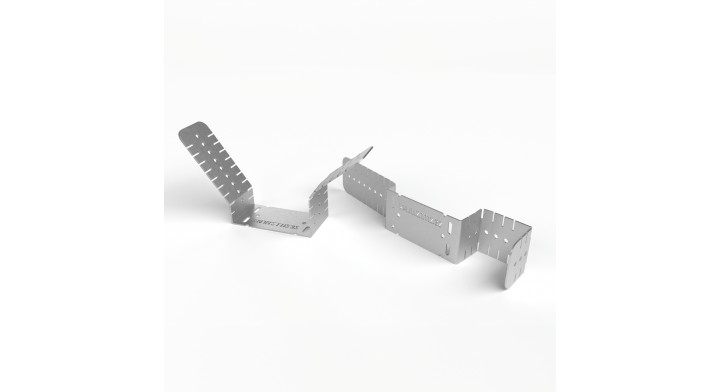

Moon Frame 2.0 Links - Connectors That Overcome All Obstacles
Moon Frame 2.0 Links is a system of connectors designed to solve the most challenging mounting problems inside a vehicle. Engineered for maximum flexibility and adaptation to various surfaces, they are an essential part of the entire Moon Frame 2.0 system.
Discover our connectors:
The Moon Frame 2.0 Bracket completes the entire system, offering solutions to the most difficult installation challenges. These specially designed connectors allow you to install the rest of the system in the places that traditionally cause the most problems. They give you the ability to create robust structures even on the most complex surfaces.

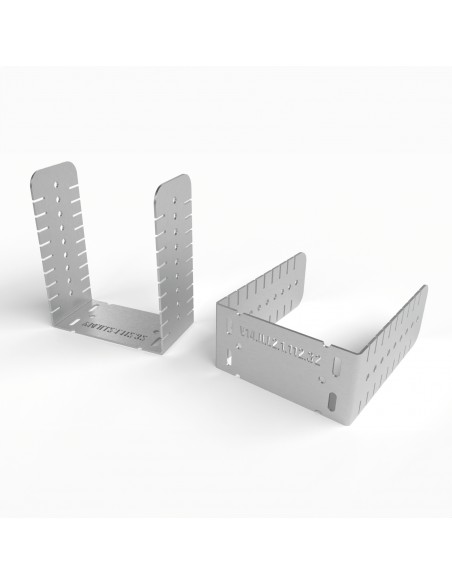

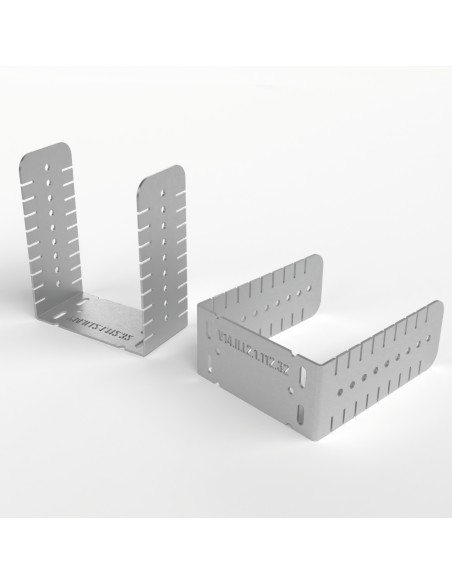

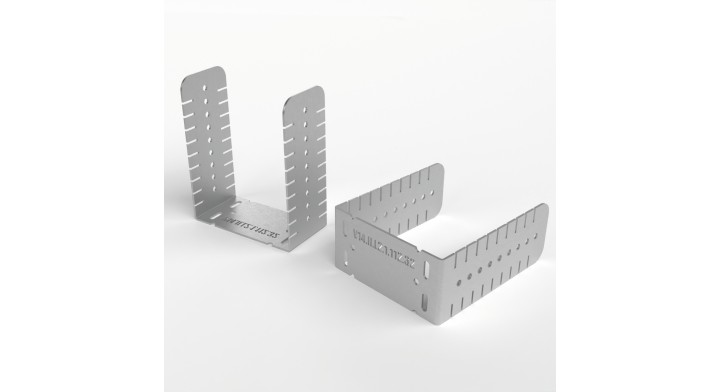

Moon Frame Link 2
An innovative U-shaped connector that revolutionizes installation on reinforcements, embossings, and projections of a vehicle. Every van has characteristic structural elements that often complicate mounting. Link 2 elegantly solves this problem. Moon Link 2 can be easily adjusted – bend it using pliers to fit any surface, ensuring a secure mount even on uneven areas.
Moon Link 2 is sold in a set of 2 pieces per package.
Moon Frame Link 3
A practical L-shaped connector, ideal as a finishing element. It works perfectly in boundary areas of the vehicle, such as joining the ceiling to the wall or at the end of structures. Moon Frame Link 3 facilitates the installation of the Moon Frame Base on the rear frame and ceiling.
Moon Link 3 is sold in a set of 2 pieces per package.

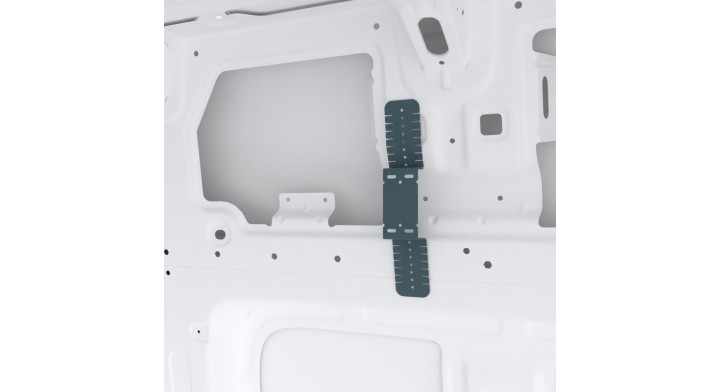

Moon Frame 2.0 Links eliminate the need to adapt to the uneven interior of the vehicle, giving you complete freedom to design your dream space.
.jpg)
Moon Frame 2.0 Link 2
Moon Frame 2.0 Base
Moon Frame 2.0 System.
A Revolution in Van Conversions
Moon Frame 2.0 is a modern, complete mounting system designed for vanlife enthusiasts and DIY builders. With precisely engineered aluminum components, this system allows for fast, safe, and highly flexible installation of walls, ceilings, upholstery, and furniture in your van.
Other Elements of the Moon Frame 2.0 Set That Might Be Useful to You:
Moon Fix 2.0 Base
Base piece for mounting Moon Boxes, upholstery and cables. Available in a choice of 3 versions.
Moon Fix Bolt B
A system for mounting Moon Boxes. The screws are dedicated to the Moon Frame 2.0 system
Moon Fix Corner
It will allow you to easily attach the upholstery to the corner of the roof and side wall.
Frequently Asked Installation Questions:
What are the recommendations before installation?
Before installation, it is advisable to align the links with the vehicle's reinforcements. Components can be trimmed and bent to fit the mounting location.
Can Moon Frame be cut to the desired length?
Yes, it can be cut with a hacksaw.
What length of rivets should I use?
The recommended length of rivets is 4/10 mm.
What is the Moon Frame installation about?
| Moon Frame can be installed using rivet nuts or pop rivets with a diameter of 4 mm. |
How do you solve the issue of thermal bridges?
| Moon Frame 2.0 is installed after insulation is applied but before the upholstery (since it is used for mounting it). |
Is it possible to quickly remove the cover to take off the upholstery?
Yes, you simply need to drill out the rivets or unscrew the rivet nuts without damaging the Moon Frame structure.
How many rivets (mounting points) are needed for the Moon Frame to hold?
One rivet can withstand a pull-off load of 5 kg.
Can painted Moon Frame 2.0 Links be ordered?
No. The links are installed beneath the Moon Frame 2.0 Base and remain hidden once the upholstery is in place.
Can the rivets be concealed?
Yes, using a RAL marker (retouching marker with opaque paint).
