Discover Moon Frame Corner!

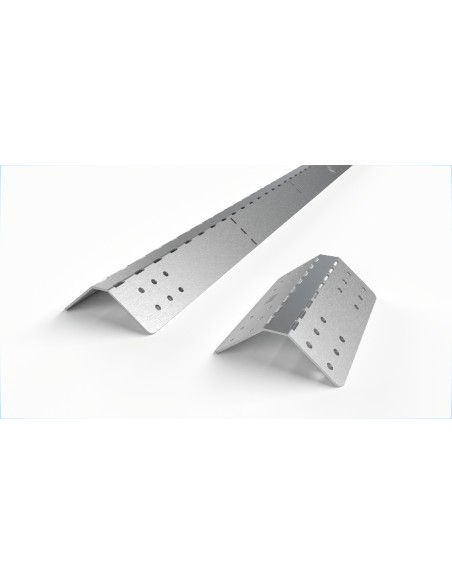

Moon Frame 2.0 Corner is a solution that makes even the most difficult joints simple. Moon Frame Corner fitted between the ceiling and the side wall gives you the space to aesthetically install your upholstery. The corners are designed to be installed alone or doubled, depending on the van's construction and your needs. Thanks to its clever design, this element integrates perfectly with the rest of the system, ensuring stability and aesthetics for the entire structure.
Moon Frame 2.0 Corner - The perfect finish to any joint
Moon Frame 2.0 Corner is an innovative solution that significantly simplifies the installation of wall and ceiling structures in your van. Designed to overcome the challenges of unusual angles in the interior of the vehicle. We have prepared it in a number of angles, for you to choose from in the shop section.
Why will Moon Frame 2.0 Corner change your approach to van design?
1.
Fitting into any space - select the angle closest to your needs and adjust it precisely with the pliers.
2.
Ease of joining - Corner Link can be used to join elements at identical angles.
3.
Variety of angles - the available angles of 90°, 101°, 106°, 109°, 135° and 150° cover virtually all installation needs.
4.
Practical perforations - special holes that make it easy to cut and bend the piece yourself for a perfect fit.
5.
Simple upholstery installation - a system that allows upholstery to be installed using rivets or rivet nuts.
Each Moon Frame 2.0 Corner kit includes a corner element and Corner Link at the angle of your choice, giving you complete flexibility in your space design. With the ability to cut and fit, you'll overcome any challenges with the vehicle's ribbing and structural elements.
Tailor to your needs

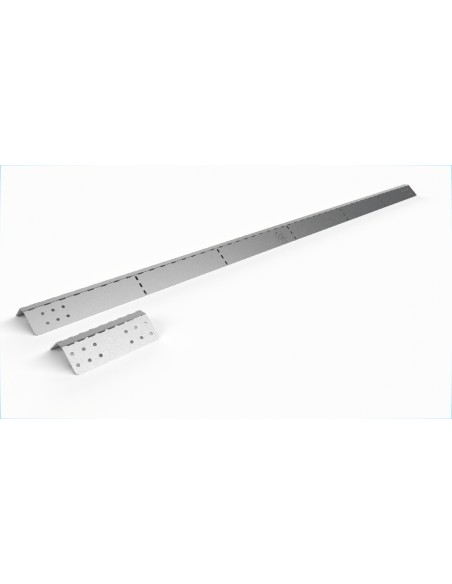

Corner has perforations (holes) so that it can be cut more easily with a saw, scissors or pliers. This makes it possible to bend it yourself with a pair of pliers or a hammer and board. In this way, a single, long Corner can be adapted to a given place in the car, depending on the embossing and design elements.
Moon Frame 2.0 System.
A revolution in vehicle interior design.
Moon Frame 2.0 is a complete solution for anyone wishing to create a functional and aesthetically pleasing interior for their van. The system is made up of cleverly designed aluminium components of 1 mm (base) and 1.5 mm (extras) that combine lightness and strength. Each component has been designed to simplify the construction process as much as possible, eliminating the usual installation problems on uneven body surfaces. Moon Frame 2.0 allows the quick creation of solid structures for upholstery, furniture and electrical installation, while ensuring the overall appearance is aesthetically pleasing.
Other components of the Moon Frame 2.0 kit that you may find useful:
Moon Frame 2.0 Base
The base of the Moon Frame 2.0 system. Allows the upholstery and the Moon Box to be fitted comfortably and quickly.
Moon Fix Links
They give you the ability to create robust structures even on the most complex surfaces.
Frequently Asked Installation Questions:
What are the recommendations before installation?
It is a good idea to put the Corners on the vehicle and mark the bending or cutting points before starting installation.
Can Moon Frame be cut to the desired length?
Yes, it can be cut with a hacksaw.
What length of rivet should be used?
The recommended rivet length is 4/10 mm.
What is Moon Frame installation all about?
Moon Frame can be mounted on rivet nuts or rivets with a diameter of 4 mm.
How do you solve the problem of thermal bridges?
Moon Frame 2.0 is installed after the insulation has been applied, but before the upholstery (as it is used to install it).
What thickness of upholstery can be fitted?
Moon Frame sets provide for the installation of hard upholstery 6mm thick, and soft upholstery (finished with foam or soft material 8mm thick).
How many rivets (mounting points) do I need to make the Moon Frame stick?
One rivet can withstand a breaking load of 5 kg.
Is it possible to order a painted Moon Frame Corner?
No. The Corners are hidden under the upholstery, there is no need to paint them.
